Rama: OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Prednja vilica: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel

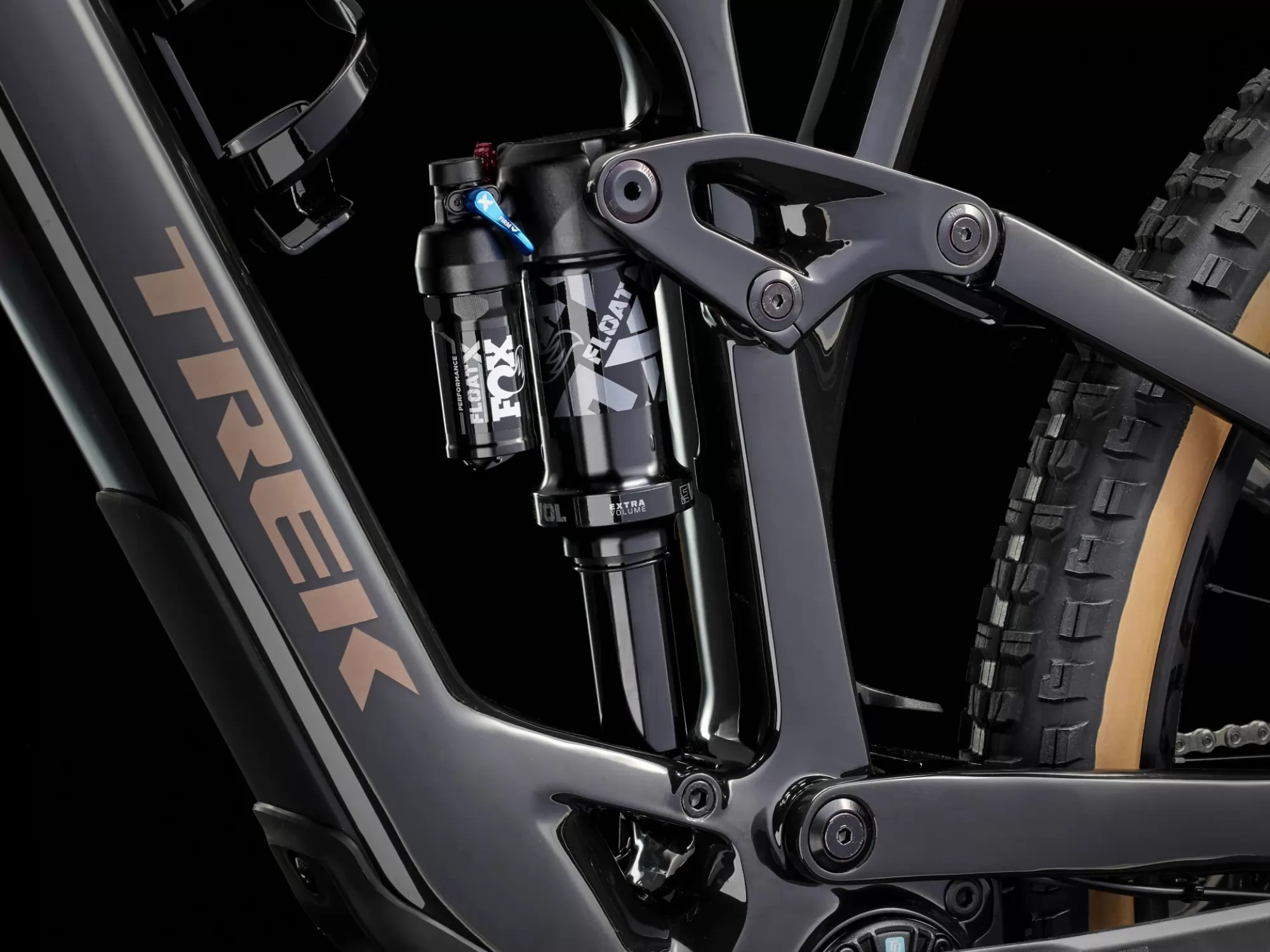

Zadnja suspenzija: Fox Performance Float X, 2-position damper, 205 mm x 60 mm
Kotači: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29″
Gume: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29×2.50″

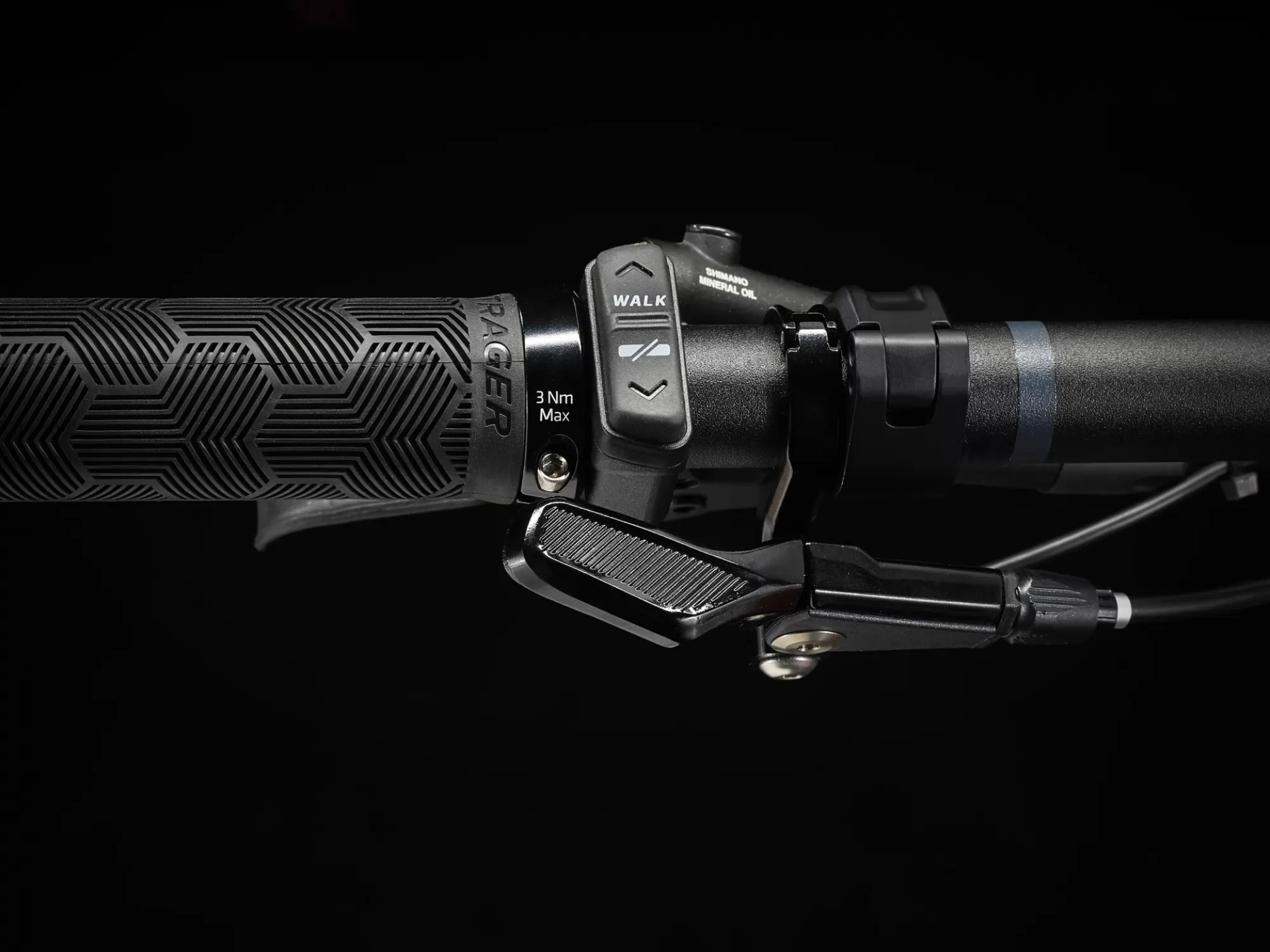

Ručice mjenjača: Shimano SLX M7100, 12-speed
Zadnji mjenjač: Shimano XT M8100, long cage
Pogon: E*thirteen E*spec Plus, 165 mm length
Osovina pogona: SRAM DUB MTB Wide, 73 m, BSA threaded
Kazeta: Shimano SLX M7100, 10-51T, 12-speed
Lanac: SRAM GX Eagle, T-Type, 12-speed
Sjedalo: Bontrager Arvada, hollow chromoly rails, 138 mm width
Cijev sjedala: TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Kormilo: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Garnitura vilice: Integrated cartridge bearing, 1-1/8″ top, 1.5″ bottom, angle adjust cup compatible
Kočnice: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Baterija: 360 Wh
